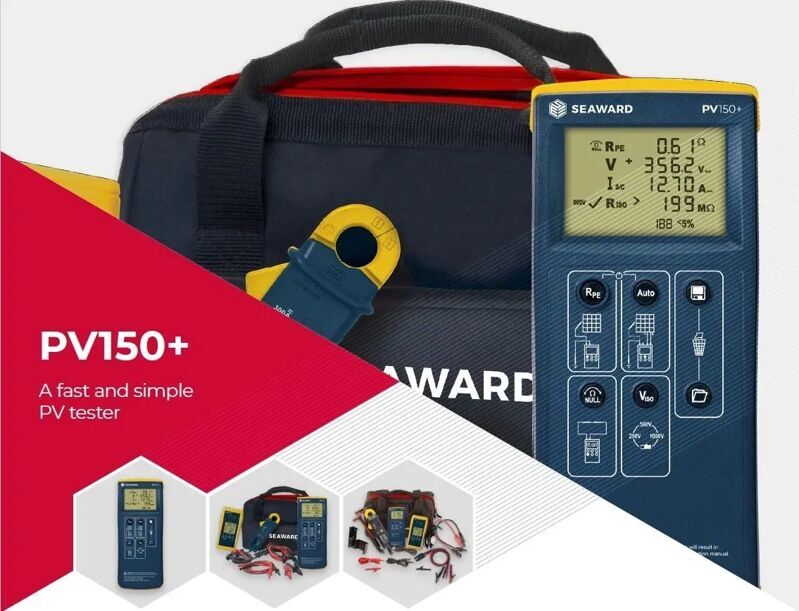

光伏電站安規測試儀 PV150+ COMPLETE KIT：

PV150+適用于光伏電站電氣安規測試及性能驗證

PV150+是PV150的升級版，采用更先進的測試技術，更適合現代光伏系統的測試應用，進一步提升了光伏電站檢測效率。集成接地連續性測試，直流側工作電流和發電功率測試功能，同時只需一個按鍵，絕緣電阻、開路電壓、短路電流測試即可完成，大大提升光伏電站現場電氣安全測試效率。

PV150+ COMPLETE KIT光伏電站安規測試儀技術參數:

開路電壓測試(PV Terminals)

顯示量程                                                                         0.0VDC -1000VDC

測試量程                                                                         5.0VDC-1000VDC

分辨率                                                                             0IVDC maximum

精度                                                                                ±(0.5 % +2 digits)

提示音                                                                             DC 電壓極性正確或反轉

短路電流測試(PV Terminals）

顯示量程                                                                          0.00ADC -15.00ADC

測試量程                                                                          0.50ADC -15.00ADC

大功率                                                                              10kw

分辨率                                                                              0.01ADC maximum

精度                                                                                  ±（1% + 2 digits）

接地電阻連續性測試(4mm Terminals)

開路下的測試電壓                                                              >4VDC,nominal

2Ω下的測試電流                                                                >200mA

顯示量程                                                                           0.00Ω -199Ω

測試量程(EN 61557-4)                                                      0.05Ω-199Ω

分辨率                                                                               0.01Ω maximum

精度                                                                                   ±(2% + 5 digits)

測試線阻值調零                                                                 Zero up to 100 by zero button

可視告警                                                                            ≥30V AC or DC at inputs

電路保護                                                                           Test inhibited if 230V AC or DC at inputs

根據 IEC61557-4標準的重復測試                                     Approx 4000 1second test

絕緣電阻測試

開路測試電壓                                                                    250V, 500V, 1000V (as per IEC61557-2)

測試電壓規格                                                                    -0% +20% (open circuit)

測試電壓 @ 1mA                                                              >1mA into UN x (1000Ω/V)

短路測試電流                                                                    <2mA

顯示量程                                                                            0.05MΩ - 199MΩ

測試量程 (EN 61557-2)                                                      0.05MΩ - 199MΩ

分辨率                                                                                0.01MΩ maximum

精度                                                                                    0.05MΩ - 100MΩ ± (5% + 5 digits)  101MΩ - 199MΩ ± (10% + 5 digits)

可視告警                                                                             ≥ 30V AC or DC at inputs

電路保護                                                                             Test inhibited if ≥ 30V AC or DC   at inputs

根據 IEC61557-4標準的重復測試                                        Approx 3000 1 second tests

Rpe 電壓測量 (4mm Terminals)

顯示量程                                                                            30V - 440VAC/DC

電壓測量量程                                                                    30V - 440VDC  30V - 440VAC 50-60Hz

分辨率                                                                                1V

精度                                                                                    ± (5% + 2 digits)

組件工作電流測量 (via AC/DC Current Clamp)

顯示量程                                                                             0.1A - 40.0A

電流測量量程                                                                      0.1A - 40.0A DC  0.1A - 40.0A AC 50-60Hz

分辨率                                                                                 0.1A

精度                                                                                     ± (5% + 2 digits)

組件發電功率測量 (via AC/DC Current Clamp and PV Terminals)

顯示量程                                                                            0.00kW - 40kW

測量量程                                                                            0.50kW - 40kW

分辨率                                                                                0.01kW

精度                                                                                    ± (5% + 5 digits)

通用參數

儀器尺寸和重量

重量                                                                                     1.1kg

尺寸                                                                                     26.4 x 10.7 x 8cm

顯示                                                                                     LCD 屏帶背光功能

供電                                                                                      6 x 1.5V AA 電池

電池壽命                                                                               >1000 測試序列

自動關機                                                                               用戶可設置

內存                                                                                      高達200 組完整測試數據

通訊

通過USB接口下載到PC (CSV format)

無線 “Solarlink TM” 技術和 Survey 200R通訊 (范圍 ~30m/100ft)

軟件

兼容SolarCert software (English language only)

為什么要買PV150+?

> 電容感應涌流耐沖擊性提升300%

> 滿足IEC62446標準要求的測試項目

> 安全設計減低帶電操作的風險

> 使用方便，簡單按鍵可完成所需測試

> 內置數據存儲功能和數據導出接口

PV150+光伏電站安規測試儀功能特色：

> 接地連續性測試中對于較長測試線纜的電阻調零功能

> 高達1000V DC的開路電壓測試功能并帶有極性顯示

> 高達15A DC短路電流測試功能

> 光伏陣列絕緣電阻測試電壓250/500/1000V可選

> 可針對單一組件或整個組串進行測試

PV150+套裝包括

> PV150+ 主機

> 2x MC4 測試適配器

> 2x帶鱷魚夾的測試探頭

> AC/DC 電流鉗

> Solar Survey 200R輻照度計和溫度探頭

> Solar Survey200R 安裝夾具

> 堅固的便攜包

> 快速使用指南

> UKAS 認證報告

> SolarCert 軟件
