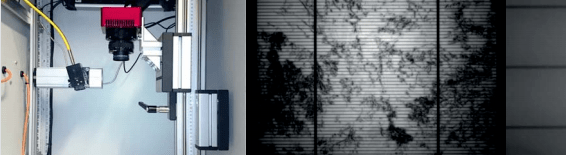

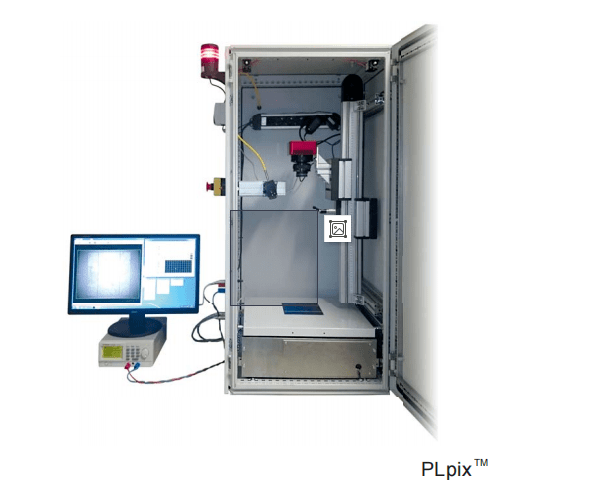

光伏組件Pl測試儀,DaySy-P利用高分辨率的Electroluminescence(EL)和Photoluminescence(PL)技術，每天可測高達3000塊光伏組件。
inactive areas and quantifies series resistance material quality and quantifies parallel resistance
技術特點：
☆ 科學InGaAs相機
☆ Z大16megapixel
☆ 可變的視野范圍：200*200m㎡ 到5*5m㎡
☆ 激光激勵Z大到2個太陽 大于97%的均勻性
☆ 串聯電阻評估
☆ 暗電流密度評估
☆ QSSPC集成用于校準使用期限
產品參數選項如下：
DaySy Cam makes all the difference in Throughput of up to 3000 PV
modules per day | ||||
Model | 320e | 640e | 1280e | |
Image Size | 0.3 MP | 1.3
MP | 5.2
MP | |
EL | PID | 2500 | 3000 | 3000 |
Inactive Area > 5% | 1200 | 1500 | 2000 | |
Microcracks | 800 | 1000 | 1500 | |
PL | PID | 2000 | 2500 | 2500 |
Inactive Area
> 5% | 1000 | 1250 | 1750 | |
Microcracks | 500 | 1000 | 1250 | |
DaySy Box provides
different levels of Excitation for
PL and EL | |||
Model | DaySy-P | ||
PL Imaging | √ | √ | √ |
EL Imaging | √ | √ | √ |
PV Powered | √ | √ | √ |
Weight | 5 kg | 25 kg | |
Dimensions | 20x15x10 cm | 90x60x15 cm | |
PV Current/Voltage | max. 10 A / 1000 Vdc | ||
AC Mains | 100
– 240 Vac | ||
Ingress Protection | IP
54 | ||
DaySy PSU | Required | Optional | |
DC Current/Voltage | 5.5
A / 660 Vdc | ||
Series Connection | 2
units in series increase voltage to 1000 Vdc | ||
Dimensions | 60x60x20
cm | ||
Weight | 24 kg | ||
AC Mains | 200
– 480 Vac; single or three phase | ||
Ingress Protection | IP
54 in transport case | ||
